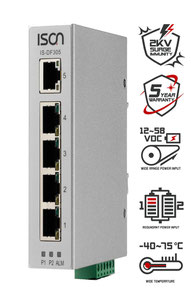

Model name

IS-DF305 Series



Description



5 ports Fast Ethernet unmanaged Layer 2 Industrial Ethernet Switch



Introduction

ISON IS-DF305 series are cost-effective unmanaged Fast Ethernet Switches that providing copper and fiber connectivity according field needs, with plug&play, easy to use, compact size benefit, user can easily use in factory production line, embedded into machine system or use for any simple network expansion application. IS-DF305 series unmanaged switches supports

some useful function by default, such as storm protection function can prevent unexpected traffic flood to the network. IS-DF305 is the perfect solution for general application and edge site installation.



Key Features



  1. Provide 5 / 4 10/100Mb Copper ports with 0 / 1 100FX Single/Multi-mode ports.

  2. IEEE 802.3x flow control & back-pressure

  3. Layer 2 wire-speed switching engine

  4. Broadcast Storm Protection

  5. Wide-temperature range (-40~75ºC)

  6. Redundant power input (12~58 VDC)

  7. Reserve power protection

  8. Din-Rail or wall mount installation

  9. Relay Output Alarm

  10. IP 30 Protection

  11. Rugged Fanless design

  12. 2KV Surge immunity on RJ45 ports

  13. 1.5KV Hipot for port isolation

Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DF305

Industrial 5 port 10/100 Mb Layer 2 unmanaged Ethernet Switch

5



IS-DF305-M

Industrial 5 port 10/100 Mb Layer 2 unmanaged Ethernet Switch

4

2KM Multi-mode

IS-DF305-S

Industrial 5 port 10/100 Mb Layer 2 unmanaged Ethernet Switch

4

40KM Single-mode





Download
IS-DF305 Series.pdf
Adobe Acrobat Document 423.9 KB
Download

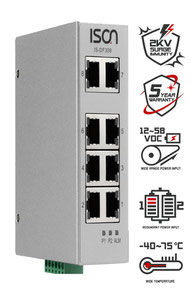

Model name

IS-DF308 Series



Description



8 port Fast Ethernet unmanaged Layer 2 Industrial Ethernet Switch



Introduction

ISON IS-DF308 series are cost-effective unmanaged Fast Ethernet Switches that providing copper and fiber connectivity according field needs, with plug&play, easy to use, compact size benefit, user can easily use in factory production line, embedded into machine system or use for any simple network expansion application. IS-DF308 series unmanaged switches supports

some useful function by default, such as storm protection function can prevent unexpected traffic flood to the network. IS-DF308 is the perfect solution for general application and edge site installation.



Key Features

  1. 8 / 6 10/100Mb Copper ports with 0 / 2 100 SFP fiber ports

  2. IEEE 802.3x flow control & back-pressure

  3. Layer 2 wire-speed switching engine

  4. Multicast / Broadcast / Flooding Storm Control

  5. Fan-Less design

  6. Wide-temperature range (-40~75ºC)

  7. Redundant power input (12~58 VDC)

  8. Reserve power protection

  9. Din-Rail or wall mount installation

  10. Relay Output Alarm

  11. IP 30 Protection

  12. 2KV Surge immunity on RJ45 ports

  13. 1.5KV Hipot for port isolation



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DF308-2F

Industrial 8 port Fast Ethernet Layer 2 unmanaged Ethernet Switch

6

2

IS-DF308

Industrial 8 port Fast Ethernet Layer 2 unmanaged Ethernet Switch

8













Download
IS-DF308 Series.pdf
Adobe Acrobat Document 425.1 KB
Download

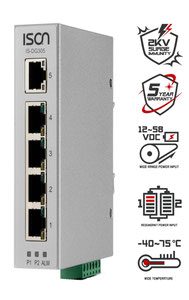

Model name

IS-DG305 Series



Description



5 Giga ports unmanaged Layer 2 Industrial Ethernet Switch



Introduction



ISON IS-DG305 series are full Gigabit unmanaged Ethernet Switches that providing 5 Gigabit ports fulfill easy to use, plug &play applications. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. With easy to use, cost effective unmanaged switch, user can easily use in factory production line or embedded into machine system. Also, IS-DG305 series unmanaged switches supports some useful function by default, such as QoS, storm protection. That can help for the network traffic optimization.



Key Features



  1. 5 / 4 Giga Copper ports with 0 / 1 100/1000 SFP ports.

  2. Support 9K Jumbo frames

  3. IEEE 802.3x flow control & back-pressure

  4. Layer 2 wire-speed switching engine

  5. Support IEEE 802.1p TOS/Diffserv, QoS by default

  6. Multicast / Broadcast / Flooding Storm Control

  7. Wide-temperature range (-40~75ºC)

  8. Redundant power input (12~58 VDC)

  9. Reserve power protection

  10. Din-Rail or wall mount installation

  11. Support Relay Output Alarm

  12. IP 30 Protection

  13. 2KV surge immunity on RJ45 Copper ports

  14. 1.5KV Hipot

  15. Rugged Fanless design



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG305-F

Industrial 5 port Gigabit Layer 2 unmanaged Ethernet Switch

4

1

IS-DG305

Industrial 5 port Gigabit Layer 2 unmanaged Ethernet Switch

5













Download
IS-DG305 Series.pdf
Adobe Acrobat Document 422.5 KB
Download

Model name

IS-DG308 Series



Description



8 Giga ports unmanaged Layer 2 Industrial Ethernet Switch



Introduction



ISON IS-DG308 series are full Gigabit unmanaged Ethernet Switches that providing 8 Gigabit ports fulfill easy to use, plug &play applications. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. With easy to use, cost effective unmanaged switch, user can easily use in factory production line or embedded into machine system. Also, IS-DG308 series unmanaged switches supports some useful function by default, such as QoS, storm protection. That can help for the network traffic optimization.



Key Features



  1. Provide 8 / 6 Giga Copper ports with 0 / 2 100/1000 SFP ports.

  2. Support 9K Jumbo frames

  3. IEEE 802.3x flow control & back-pressure

  4. Layer 2 wire-speed switching engine

  5. Support IEEE 802.1p TOS/Diffserv, QoS

  6. Multicast / Broadcast / Flooding Storm Control

  7. Fan-Less design with wide-temperature range (-40~75ºC)

  8. Redundant power input 12~58 VDC

  9. Reserve power protection

  10. Support Din-Rail or wall mount installation

  11. Support Relay Output Alarm

  12. IP 30 Protection

  13. 1.5KV Hipot

  14. 2 KV surge immunity on RJ45 Copper ports



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG308-2F

Industrial 8 port Gigabit Layer 2 unmanaged Ethernet Switch

6

2

IS-DG308

Industrial 8 port Gigabit Layer 2 unmanaged Ethernet Switch

8











Download
IS-DG308 Series.pdf
Adobe Acrobat Document 465.6 KB
Download

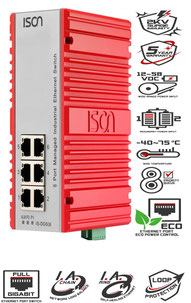

Model name

IS-DG506 Series



Description



6 Giga ports Din-Rail managed Layer 2/4 Industrial Ethernet Switch



Introduction

ISON IS-DG506 series are full Gigabit Ethernet Switches that provides 6 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. Besides, it reduces the response time for timing sensitive applications which may be combine all video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, IS-DG506 series managed switches are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for all kind of Industrial applications.





Key Features

  1. 6/4 Gigabit RJ45 Copper ports plus 0/2 100 / 1000 Based SFP(SX/LX/LHX) ports

  2. Support 9K Jumbo frames

  3. Layer 2 wired-Speed switching engine

  4. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

  5. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

  6. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

  7. Ring Coupling, Multiple Ring, Dual Homing

  8. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR

  9. Multicasting support IGMP v1/v2, proxy & snooping, MLD snooping

  10. IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server

  11. VertiPHY Cable Diagnostics, Per VLAN mirroring

  12. Redundant Power Input (12~58 VDC) & Reverse power protection

  13. SNMP v1/v2c/v3, Trap / Inform, RMON

  14. Din-Rail and Wall Mount Installation

  15. Port Power Saving

  16. Loop Protection

  17. -40~75ºC operating temperature

  18. IP 30 Protection

  19. 2KV surge immunity on RJ45 Copper port

  20. 1.5KV Hipot

  21. Rugged Fanless Design

Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG506

Industrial 6 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

6



IS-DG506-2F

Industrial 6 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

4

2









Download
IS-DG506 Series.pdf
Adobe Acrobat Document 610.8 KB
Download

Model name

IS-DG508 Series



Description





8 Giga ports Din-Rail managed Layer 2/4 Industrial Ethernet Switch



Introduction



ISON IS-DG508 series are full Gigabit Ethernet Switches that provides 8 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. Besides, it reduces the response time for timing sensitive applications which may be combine all video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, IS-DG508 series managed switches are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for all kind of Industrial applications.



Key Features



  1. 8/6 Gigabit RJ45 Copper ports plus 0/2 100 / 1000 Based SFP(SX/LX/LHX) ports

  2. Support 9K Jumbo frames

  3. Layer 2 wired-Speed switching engine

  4. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

  5. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

  6. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

  7. Ring Coupling, Multiple Ring, Dual Homing

  8. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR

  9. Multicasting support IGMP v1/v2, proxy & snooping, MLD snooping

  10. IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server

  11. VertiPHY Cable Diagnostics, Per VLAN mirroring

  12. Redundant Power Input (12~58 VDC) & Reverse power protection

  13. SNMP v1/v2c/v3, Trap / Inform, RMON

  14. Din-Rail and Wall Mount Installation

  15. Port Power Saving

  16. Loop Protection

  17. -40~75ºC operating temperature

  18. IP 30 Protection

  19. 2KV surge immunity on RJ45 Copper port

  20. 1.5KV Hipot

  21. Rugged Fanless Design



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG508

Industrial 8 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

8



IS-DG508-2F

Industrial 8 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

6

2





Download
IS-DG508 Series.pdf
Adobe Acrobat Document 617.9 KB
Download

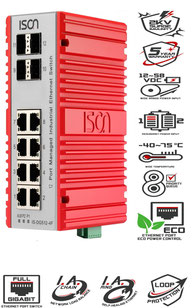

Model name

IS-DG510 Series



Description





10 Giga ports Din-Rail managed Layer 2/4 Industrial Ethernet Switch



Introduction



ISON IS-DG510 series are full Gigabit Ethernet Switches that provides 10 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. Besides, it reduces the response time for timing sensitive applications which may be combine all video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, IS-DG510 series managed switches are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for all kind of Industrial applications.



Key Features



  1. 10/8/6 Gigabit RJ45 Copper ports plus 0/2/4 100 / 1000 Based SFP(SX/LX/LHX) ports

  2. Support 9K Jumbo frames

  3. Layer 2 wired-Speed switching engine

  4. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

  5. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

  6. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

  7. Ring Coupling, Multiple Ring, Dual Homing

  8. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR

  9. Multicasting support IGMP v1/v2, proxy & snooping, MLD snooping

  10. IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server

  11. VertiPHY Cable Diagnostics, Per VLAN mirroring

  12. Redundant Power Input (12~58 VDC) & Reverse power protection

  13. SNMP v1/v2c/v3, Trap / Inform, RMON

  14. Din-Rail and Wall Mount Installation

  15. Port Power Saving

  16. -40~75ºC operating temperature

  17. Loop Protection

  18. IP 30 Protection

  19. 2KV surge immunity on RJ45 Copper port

  20. 1.5KV Hipot

  21. Rugged Fanless Design



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG510

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

10

0

IS-DG510-2F

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

8

2

IS-DG510-4F

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

6

4







Download
IS-DG510 Series.pdf
Adobe Acrobat Document 662.5 KB
Download

Model name

IS-DG510-PN Series



Description





10 Giga ports Din-Rail managed Layer 2/4 Industrial Profinet Switch



Introduction



ISON IS-DG510-PN series are all Gigabit Profinet switch that providing 10 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. With Profinet optimized function, it can support both client, client/server mode for the PLC/SCADA system. With easy to use, non-stop integration, it can helps your system be performed in high availability, multi-direction operation. Also, IS-DG510-PN series may mix of video, voice, and data stream in the traffic flow. With powerful S/W, H/W features, IS-DG510-PN series managed switch are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for all kind of Industrial applications.



Key Features



  1. 10 / 8 / 6 Gigabit RJ45 Copper ports plus 0 /2 /4 100 / 1000 Based SFP ports

  2. Support Profinet Class 2, optional MRP (MRM, MRC)

  3. Support 9K Jumbo frames

  4. Support Profinet client mode, client/server mode operation.

  5. Layer 2 wired-Speed switching engine

  6. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

  7. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

  8. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

  9. Ring Coupling, Multiple Ring, Dual Homing

  10. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ , MVR

  11. Multicasting support IGMP v1/v2/v3, proxy & snooping, MLD snooping

  12. IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server

  13. VertiPHY Cable Diagnostics, Per VLAN mirroring

  14. Redundant Power Input (12~58 VDC) & Reverse power protection

  15. SNMP v1/v2c/v3, Trap / Inform, RMON

  16. Din-Rail and Wall Mount Installation

  17. Port Power Saving

  18. -40~75ºC operating temperature

  19. Loop Protection

  20. IP 30 Protection

  21. 2KV surge immunity on RJ45 Copper port

  22. 1.5KV Hipot

  23. Rugged Fan-less design

Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG510-4F-PN-MRC

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC (Profinet support)

6

4

IS-DG510-2F-PN-MRC

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC (Profinet support)

8

2

IS-DG510-PN-MRC

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC (Profinet support)

10



IS-DG510-4F-PN-MRM (Please contact sales for more detailed information)

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC (Profinet support)

6

4

IS-DG510-2F-PN-MRM (Please contact sales for more detailed information)

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC (Profinet support)

8

2

IS-DG510-PN-MRM (Please contact sales for more detailed information)

Industrial 10 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC (Profinet support)

10











Download
IS-DG510-PN Series.pdf
Adobe Acrobat Document 698.0 KB
Download

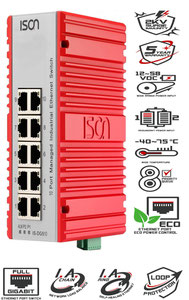

Model name

IS-DG512 Series



Description





12 Giga ports Din-Rail managed Layer 2/4 Industrial Ethernet Switch



Introduction



ISON IS-DG512 series are full Gigabit Ethernet Switches that provides 12 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. Besides, it reduces the response time for timing sensitive applications which may be combine all video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, IS-DG512 series managed switches are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for all kind of Industrial applications.



Key Features



  1. 8 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP(SX/LX/LHX) ports

  2. Support 9K Jumbo frames

  3. Layer 2 wired-Speed switching engine

  4. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

  5. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

  6. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

  7. Ring Coupling, Multiple Ring, Dual Homing

  8. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR

  9. Multicasting support IGMP v1/v2, proxy & snooping, MLD snooping

  10. IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server

  11. VertiPHY Cable Diagnostics, Per VLAN mirroring

  12. Redundant Power Input (12~58 VDC) & Reverse power protection

  13. SNMP v1/v2c/v3, Trap / Inform, RMON

  14. Din-Rail and Wall Mount Installation

  15. Port Power Saving

  16. Loop Protection

  17. -40~75ºC operating temperature

  18. IP 30 Protection

  19. 2KV surge immunity on RJ45 Copper port

  20. 1.5KV Hipot

  21. Rugged Fanless Design



 Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG512-4F

Industrial 12 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

8

4



Download
IS-DG512 Series.pdf
Adobe Acrobat Document 576.6 KB
Download

Model name

IS-DG514 Series



Description





14 Giga ports Din-Rail managed Layer 2/4 Industrial Ethernet Switch



Introduction

ISON IS-DG514 series are full Gigabit Ethernet Switches that provides 14 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. Besides, it reduces the response time for timing sensitive applications which may be combine all video, voice, and data streams in the traffic flow. With the powerful S/W and H/W features, IS-DG514 series managed switches are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for all kind of Industrial applications.



Key Features



  1. 10 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP(SX/LX/LHX) ports

  2. Support 9K Jumbo frames

  3. Layer 2 wired-Speed switching engine

  4. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

  5. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

  6. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

  7. Ring Coupling, Multiple Ring, Dual Homing

  8. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR

  9. Multicasting support IGMP v1/v2, proxy & snooping, MLD snooping

  10. IEEE 802.1X Port-based access control / RADIUS / TACACS+ Server

  11. VertiPHY Cable Diagnostics, Per VLAN mirroring

  12. Redundant Power Input (12~58 VDC) & Reverse power protection

  13. SNMP v1/v2c/v3, Trap / Inform, RMON

  14. Din-Rail and Wall Mount Installation

  15. Port Power Saving

  16. Loop Protection

  17. -40~75ºC operating temperature

  18. IP 30 Protection

  19. 2KV surge immunity on RJ45 Copper port

  20. 1.5KV Hipot

  21. Rugged Fanless Design



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-DG514-4F

Industrial 14 port Gigabit Layer 2/4 Managed Ethernet Switch, -40~75ºC

10

4





Download
IS-DG514 Series.pdf
Adobe Acrobat Document 591.9 KB
Download

Model name

IS-RG326 Series



Description





26 Giga ports 19” unmanaged Layer 2 Industrial Ethernet Switch



Introduction

ISON IS-RG326 series are full Gigabit unmanaged Ethernet Switches that providing 26 Gigabit ports fulfill easy to use, plug &play applications. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. With easy to use, cost effective unmanaged switch, user can easily use in factory production line or embedded into machine system. Also, IS-RG326 series unmanaged switches supports some useful function by default, such as QoS, storm protection. That can help for the network traffic optimization.



Key Features



1. Provide 24 Giga Copper ports with 2 100/1000 SFP ports.

2. Support 9K Jumbo frames

3. IEEE 802.3x flow control & back-pressure

4. Layer 2 wire-speed switching engine

5. Support IEEE 802.1p TOS/Diffserv, QoS

6. Multicast / Broadcast / Flooding Storm Control

7. Fan-Less design with wide-temperature range (-40~75ºC)

8. Redundant power input 12~58 VDC or 100/240 VAC, 50Hz ~ 60Hz

9. Reserve power protection

10. Support Din-Rail or wall mount installation

11. Support Relay Output Alarm

12. IP 30 Protection

13. -40~75ºC operating temperature

14. 2 KV surge immunity on RJ45 Copper ports



15. 1.5 KV Hipot



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-RG326-2F-2A

Industrial 26 port Gigabit Layer 2 unmanaged Switch. Dual AC, -40~75ºC

24

2

IS-RG326-2F-A

Industrial 26 port Gigabit Layer 2 unmanaged Switch. Single AC, -40~75ºC

24

2

IS-RG326-2F-D

Industrial 26 port Gigabit Layer 2 unmanaged Switch. Dual DC, -40~75ºC

24

2







Download
IS-RG326 Series.pdf
Adobe Acrobat Document 415.8 KB
Download

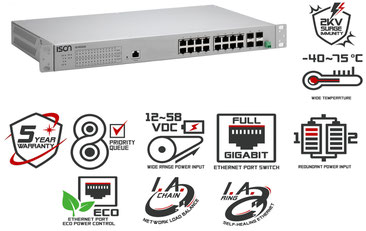

Model name

IS-RG520 Series



Description





20 Giga ports 19” managed Layer 2/4 Industrial Ethernet Switch



Introduction

ISON IS-RG520 series are full Gigabit Ethernet Switches that provides 20 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. Besides, it reduces the response time for timing sensitive applications which may be mix of video, voice, and data stream in the traffic flow. With the powerful S/W and H/W features, IS-RG520 series managed switches are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for access level network connection.



Key Features



1. 16 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP (SX/LX/LHX) ports

2. Support 9K Jumbo frames

3. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

4. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

5. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

6. Ring Coupling, Multiple Ring, Dual Homing

7. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR

8. Multicasting support IGMP v1/v2/v3, proxy & snooping

9. IEEE 802.1X Port-based access control / RADIUS Server

10. Per VLAN mirroring

11. Redundant Power Input 12~58 VDC or 100/240 VAC, 50Hz ~ 60Hz

12. Reverse power protection

13. SNMP v1/v2c/v3, Trap / Inform

14. Port Power Saving

15. -40~75ºC operating temperature

16. IP 30 Protection

17. 1.5KVHipot, 2KV surge immunity on RJ45 Copper port



18. Rugged Fan-less design



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-RG520-4F-2A

Industrial 20 port Gigabit Layer 2/4 Managed Switch, Dual AC, -40~75ºC

16

4

IS-RG520-4F-A

Industrial 20 port Gigabit Layer 2/4 Managed Switch, Single AC, -40~75ºC

16

4

IS-RG520-4F-D

Industrial 20 port Gigabit Layer 2/4 Managed Switch, Dual DC, -40~75ºC

16

4





Download
IS-RG520 Series.pdf
Adobe Acrobat Document 511.9 KB
Download

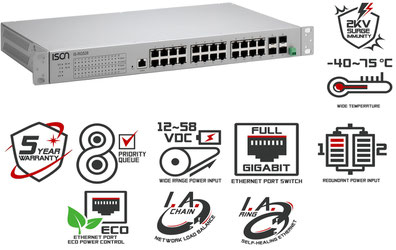

Model name

IS-RG528 Series



Description





28 Giga ports 19” managed Layer 2/4 Industrial Ethernet Switch



Introduction

ISON IS-RG528 series are full Gigabit Ethernet Switches that provides 28 Gigabit Ethernet ports to upgrade the existing network to a full Gigabit speed Infrastructure. A full Gigabit network provides higher throughput than legacy Fast Ethernet network. Besides, it reduces the response time for timing sensitive applications which may be mix of video, voice, and data stream in the traffic flow. With the powerful S/W and H/W features, IS-RG528 series managed switches are easily to prioritize, partition and optimize user’s network and provide reliable and good quality services. Especially suitable for access level network connection.



Key Features



1. 24 Gigabit RJ45 Copper ports plus 4 100 / 1000 Based SFP (SX/LX/LHX) ports

2. Support 9K Jumbo frames

3. Layer 4 ACL (Access Control List), QCL (QoS Control List), Port Control

4. Network redundancy LACP, Spanning Tree Protocol, STP, RSTP, MSTP

5. I.A. Ring, I.A.Chain (Network Load Balancing), 250pcs@20ms

6. Ring Coupling, Multiple Ring, Dual Homing

7. Port-based, Tag-based, Protocol-based VLAN, IEEE 802.1ad / QinQ, MVR

8. Multicasting support IGMP v1/v2/v3, proxy & snooping

9. IEEE 802.1X Port-based access control / RADIUS Server

10. Per VLAN mirroring

11. Redundant Power Input 12~58 VDC or 100/240 VAC, 50Hz ~ 60Hz

12. Reverse power protection

13. SNMP v1/v2c/v3, Trap / Inform

14. Port Power Saving

15. -40~75ºC operating temperature

16. IP 30 Protection

17. 1.5KVHipot, 2KV surge immunity on RJ45 Copper port



18. Rugged Fan-less design



Ordering Information

Available Models

Description

10/100/1000Mb TX

100/1000Mb FX

IS-RG528-4F-2A

Industrial 28 port Gigabit Layer 2/4 Managed Switch, Dual AC, -40~75ºC

24

4

IS-RG528-4F-A

Industrial 28 port Gigabit Layer 2/4 Managed Switch, Single AC, -40~75ºC

24

4

IS-RG528-4F-D

Industrial 28 port Gigabit Layer 2/4 Managed Switch, Dual DC, -40~75ºC

24

4





Download
IS-RG528 Series.pdf
Adobe Acrobat Document 471.2 KB
Download
